LIDAR Livox MID-360
722.69€
Innovativ product
früher 814.29€ Save 11%
Verwendete Maßeinheiten: Stück 1
949,00 / Einzelpreis
Excl. shipping

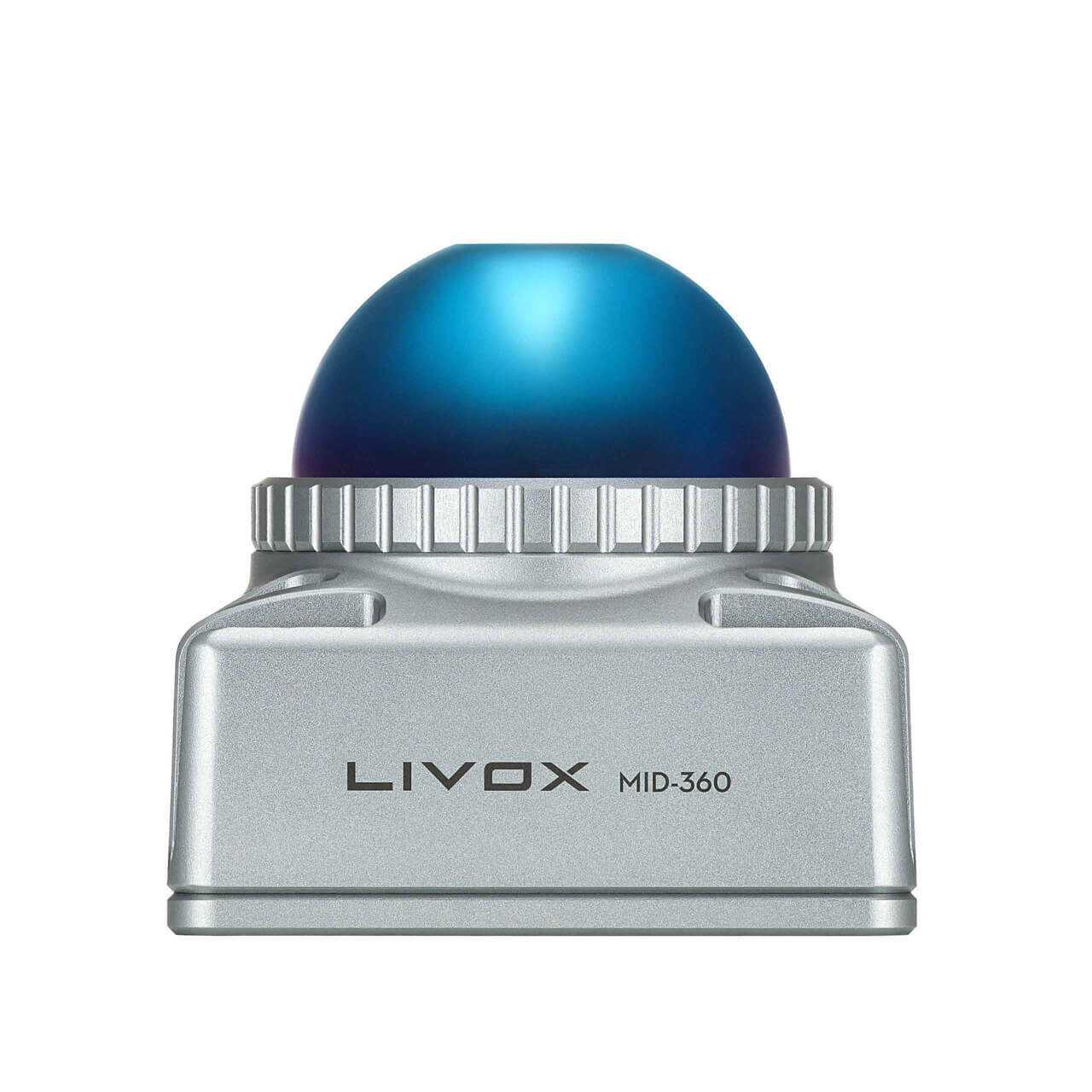

Livox Hybrid Solid-State 3D LiDAR Mid-360
In stock: 1 available
Product Details
UPC-Strichcode: 190021065758
Marke: Livox
On stock, delivery time 3-5 days, if you need more than the stock shows, please contact us.
Livox Hybrid Solid-State 3D LiDAR Mid-360 The latest Livox generation of 360° stereo capture. Designed specifically for mobile robots, the Mid-360 is easy to install thanks to its compact form factor. Great for a wide range of indoor and outdoor scenarios, the Mid-360 meets the needs of navigation, obstacle avoidance and advanced detection.
Please note that Livox does not include any connection cables! For evaluation and other applications, you will need to order a connection cable separately.
Please have a look to our bundle “LIDAR Livox MID-360 incl. Cable”
See Livox MID-360 in our Youtube channel:
Key Specifications
Please note that Livox does not include any connection cables! For evaluation and other applications, you will need to order a connection cable separately.
Please have a look to our bundle “LIDAR Livox MID-360 incl. Cable”
Model MID-360
Laser Wavelength 905 nm
Laser Safety¹ Class 1 (IEC60825-1:2014)(Eye Safety)
Detection Range (@ 100 klx) 40 m @ 10% reflectivity / 70 m @ 80% reflectivity
Close Proximity Blind Zone² 0.1 m
FOV Horizontal: 360°, Vertical: -7°~52°
Range Precision³ (1σ) ≤ 2 cm ⁴ (@ 10m) / ≤ 3 cm ⁵ (@ 0.2m)
Angular Precision（1σ ） < 0.15º
Point Rate 200,000 points/s (first return)
Frame Rate 10 Hz (typical)
Data Port 100 BASE-TX Ethernet
Data synchronization: IEEE 1588-2008 (PTPv2), GPS
Anti-Interference Function Available
False Alarm Rate (@ 100 klx) ⁶ < 0.01%
IMU Built-in IMU Model: ICM40609
Operating Temperature -4°F to 131°F (-20℃ to 55℃)⁷
IP Rating IP67
Power ⁸ 6.5 W (average)
Power Supply Voltage Range 9 ~ 27 V DC
Dimensions 65×65×60 mm
Weight 265 g
See more under : https://www.livoxtech.com/de/mid-360/specs
