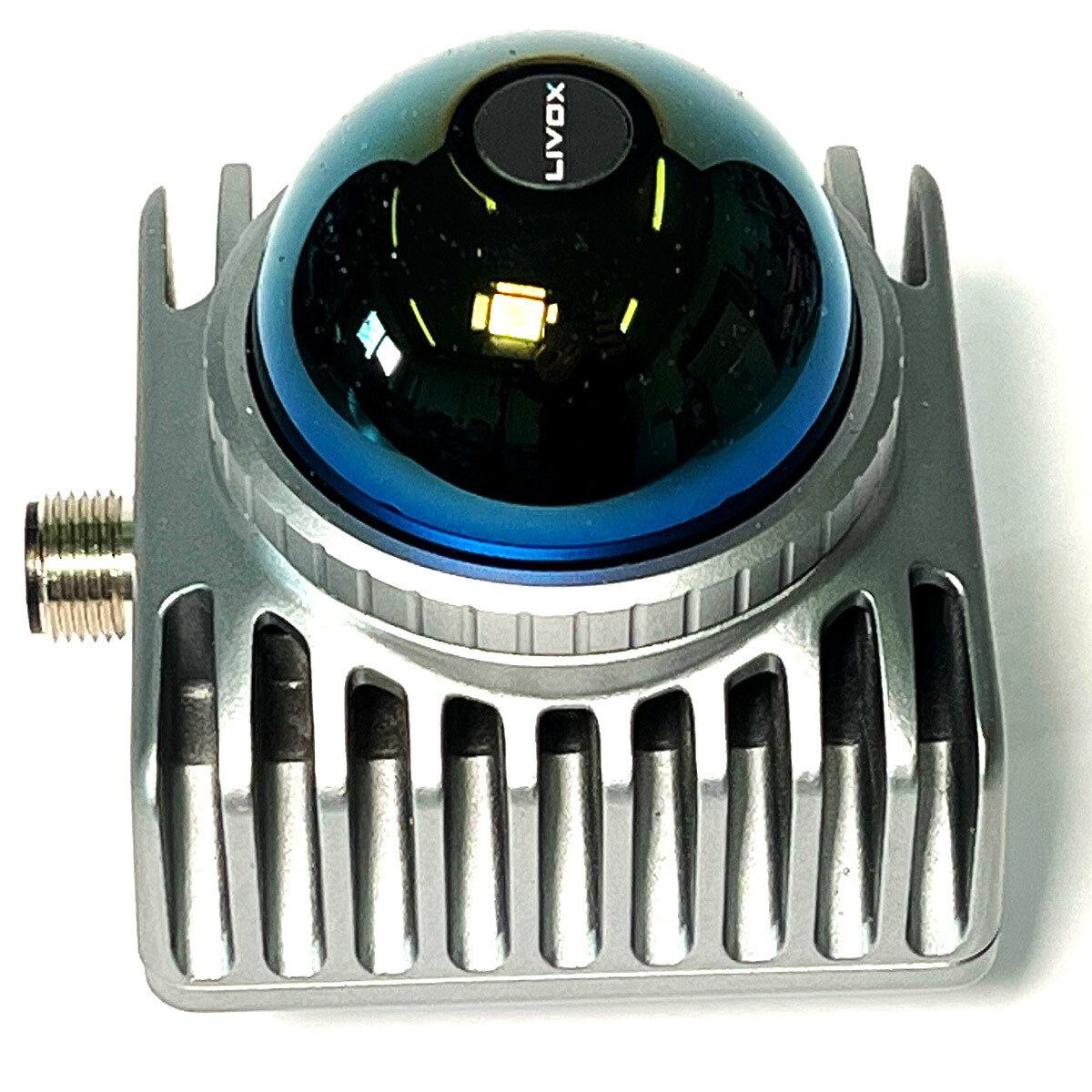

LIDAR Livox MID-360S incl. Cable
731.10€
New
Verwendete Maßeinheiten: Stück 1
Excl. shipping
Bulk pricing available for quantities of 7 units or more
Livox Hybrid Solid-State 3D LiDAR Mid-360 Include connection cable
In stock: 3 available
Buy more, save more
| Quantity | Price per item | Discount |
| 7 items | 710.00€ | 3% off |
Product Details
UPC-Strichcode: 190021065758
Marke: Livox
All prices are quoted excluding VAT and are intended for business customers only.
Please note:
The devices are usually in stock.
If you require a larger quantity than currently shown in stock, please contact us. We can arrange a replenishment order at short notice.
Livox Hybrid Solid-State 3D LiDAR Mid-360S The latest Livox generation of 360° stereo capture. Designed specifically for mobile robots, the Mid-360S is easy to install thanks to its compact form factor. Great for a wide range of indoor and outdoor scenarios, the Mid-360S meets the needs of navigation, obstacle avoidance and advanced detection.
Include connector cable.1-3 Splitter
See Livox MID-360 in our Youtube channel:
Key Specifications
Model MID-360-S
| Parameter |
|
Value |
| Model |
|
MID-360S |
| Laser Wavelength |
|
905 nm |
| Laser Safety |
|
Class 1(IEC 60825-1:2014)(safe for eyes) |
| Detection Range (@ 100 klx) |
|
38 m @ 10% reflectivity 100 m (range limit) |
| Close Proximity Blind Zone |
|
0.1 m |
| FOV |
|
Horizontak 360°, Vertical: -7°~52° |
| Distance Random Error (1σ) |
|
≤2 cm (@10 m)
≤4 cm (@ 0.2 m) |
| Angular Random Error (1σ) |
|
≤0.15° |
| Point Rate |
|
200,000 points/s |
| Frame Rate |
|
10 Hz (typical value) |
| Data Port |
|
100 BASE-TX Ethemet |
| Data Synchronization |
|
IEEE 1588-2008(PTP v2),GPS |
| Anti-lnterference Function |
|
Available |
| False Alarm Ratio (@100 klx) |
|
<0.01% |
| IMU |
|
Built-in lMU Model: ICM40609 |
| Operating Temperature |
|
-20° to 55° C (-4° to 131°F) |
| Storage Temperature |
|
-40° to 70° C(-40° to 158°F) |
| IP Rating |
|
IP67 |
| Power |
|
6.5 W (environment temperature 25°C(77°F)) |
| Power Supply Voltage Range |
|
9-27 V DC |
| Dimensions |
|
65 (width) x 65 (depth)x 60 (height) mm |
| Weight |
|
Approx. 265 g |
