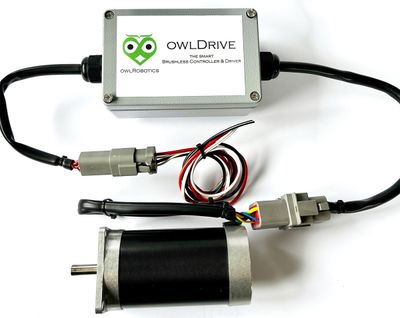

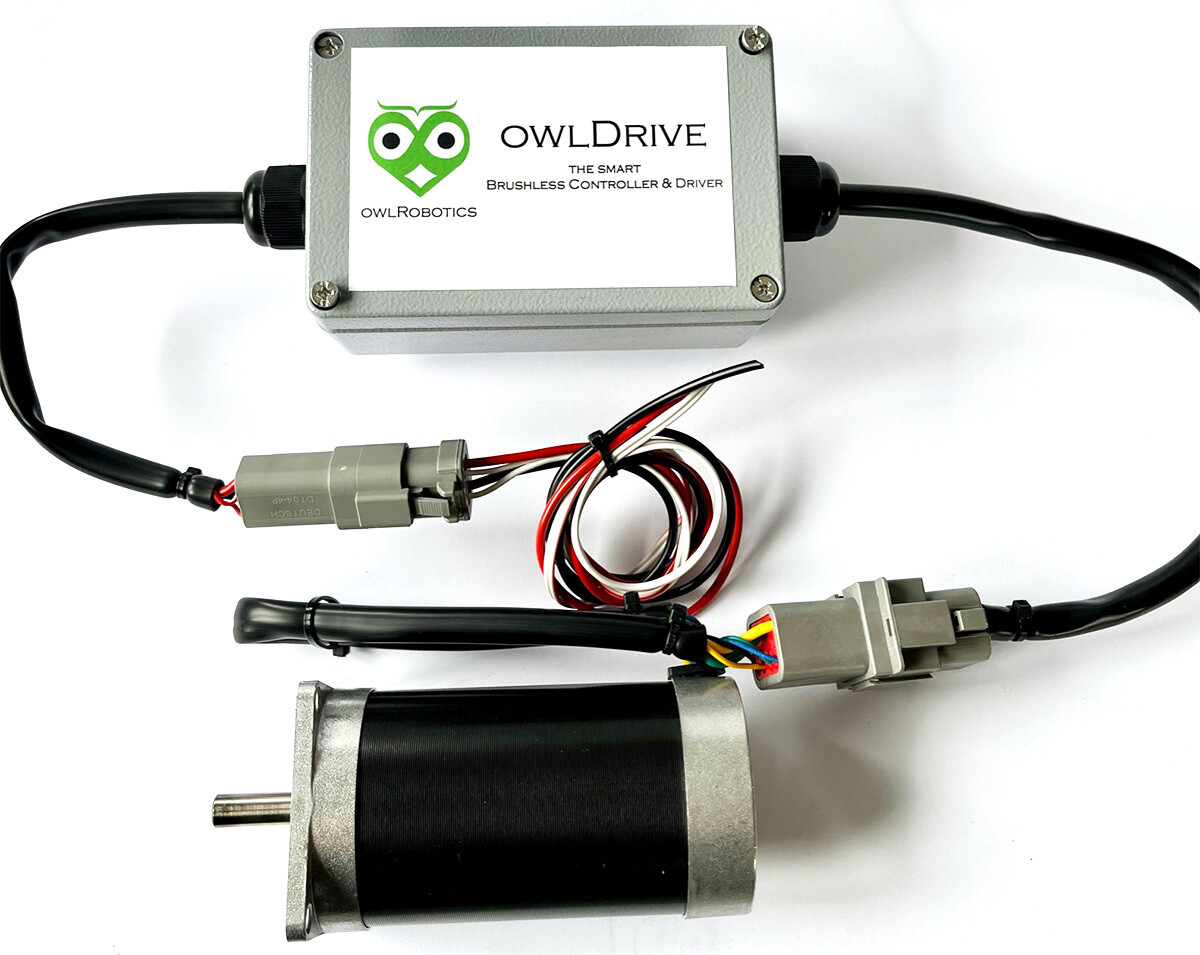

owlDrive 24-250 Motor Kit CAN
owlDrive 24-250 Motor Kit CAN incl. 138W Brushless Motor
In stock
Product Details
owlDrive 24-250
Motor 24V 138W
owlDrive case IP65
Communication via CAN Interface only!
Key Specifications
owlDrive 24-250 is for 24V DC (15-36V) Brusjhless Motors up to 250W / 480W peak
Four control modes
- Torque, controls the motor voltage, motor outputs a certain torque.
- Velocity, controls the motor rounds per min,. motor rotates with a certain velocity.
- Angle / Position, controller sets and hold a given position / angle, motor drives to a certain position.
- Trajectory, controller drives to a position in a certain time, motor drives to certain positions in certain times.
| Model |
24V 138W |
|
Rated speed (RPM) |
2500 |
|
Continuous Torque (N-m) |
0.44 |
|
Rated Current (Amps) |
8.6 |
|
Output Power (Watts) |
138 |
|
Peak Torque(N-m) |
1.6 |
|
Peak Current (Amps) |
25.8 |
|
Torque constant (N-m/Amps) |
0.063 |
|
Back EMF (V/kRPM) |
6.6 |
|
Rotor inertia （gcm2） |
140 |
|
Body Length (L) （mm） |
106.5 |
| Schaft (mm) |
8.0 |
|
Mass（kg） |
1.15 |
