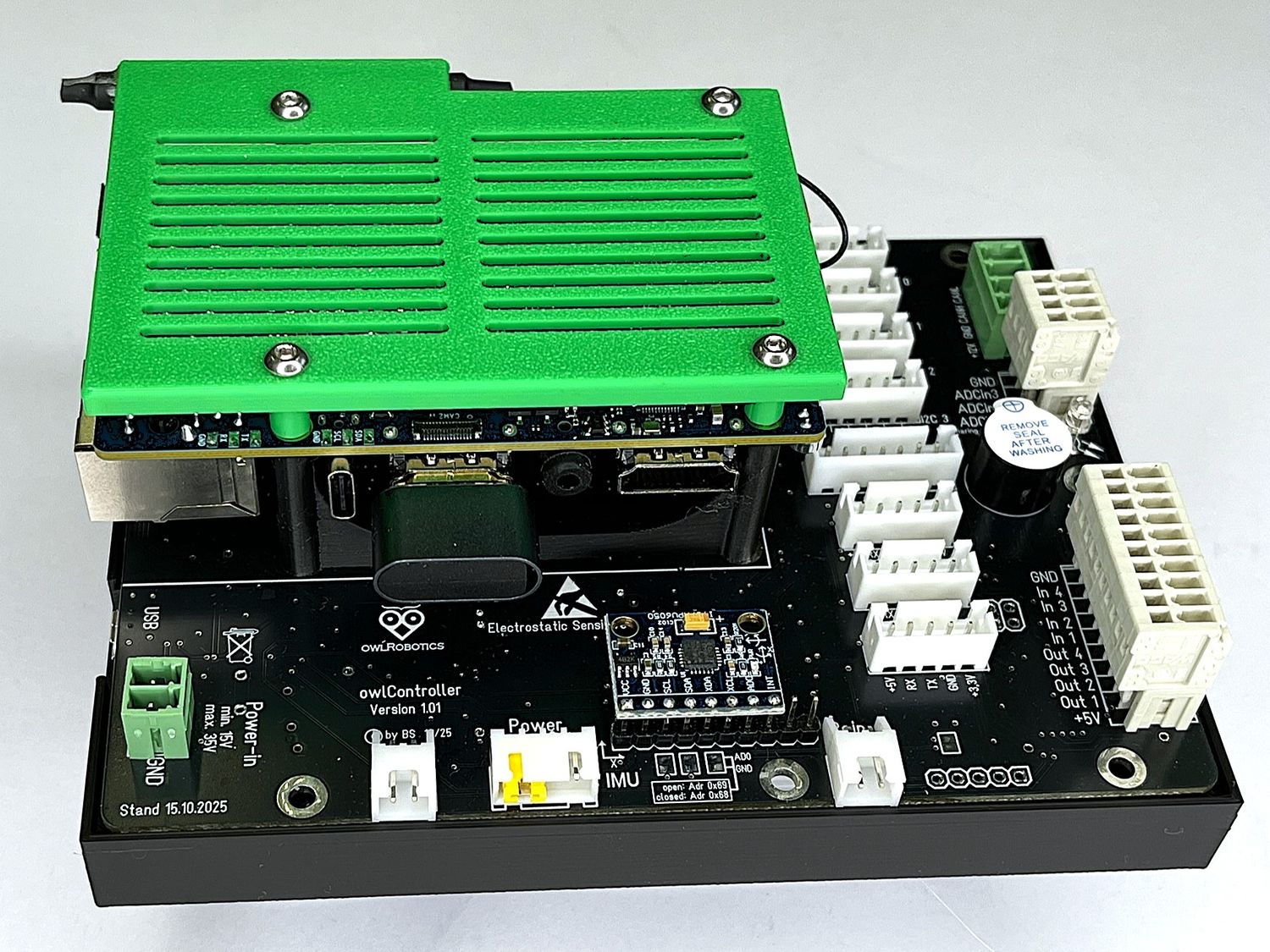

owlController incl. Orange Pi 5 PRO

The owlController is a powerful, modular control center. It integrates computing power, communication interfaces, sensors, and actuator control on a compact and robust pre-assembled PCB. Perfect for mobile robotics, GPS-guided vehicles, IoT systems, and research.

Technical Specifications:

• Microcontroller: RP2040 Dual Core
• Processor board included: Orange Pi 5 PRO 4GB RAN
• Operating Voltage: 15–35 V DC (typically 24 V)
• Current Consumption: 100–200 mA depending on configuration
• Communication: CAN, UART, USB, I²C, SPI
• Sensor Ports: IMU (I²C), I²C sensors
• Expansion Interfaces: Raspberry Pi header, USB, CAN, 4× I²C, UART, SPI
• I/O Ports: 4× ADC, 4× digital in, 4× digital out, rain sensor
• Firmware Update: via USB
• Operating Temperature: –10 °C to +70 °C
• Dimensions: 140 mm × 105 mm × 52 mm
• Weight: approx. 210 g
