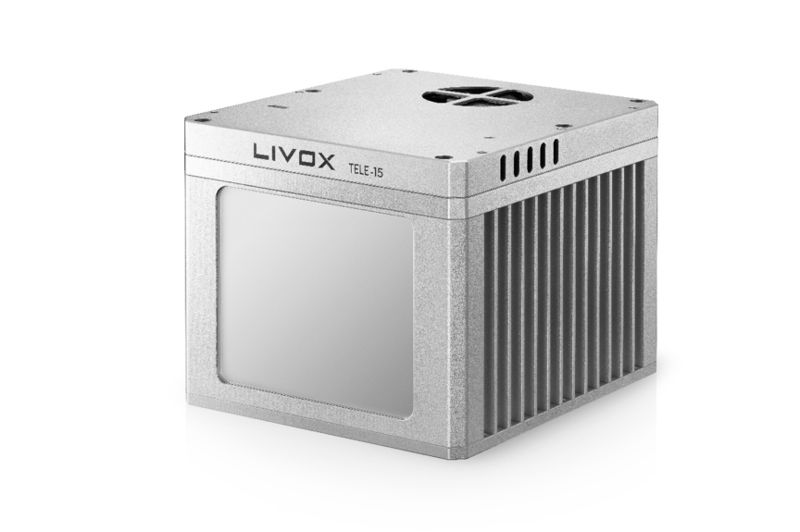

Livox Tele 15 LIDAR
not on Stock, Delivery time one week
Livox Tele-15 is a compact long-range LiDAR sensor designed for precise 3D environment detection in demanding industrial and robotics applications. With a detection range of up to 150 meters, a narrow field of view, and high point-cloud density, it is ideal for obstacle detection, navigation, mapping, and monitoring over longer distances.
Its robust design and reliable performance make it well suited for autonomous mobile robots, industrial vehicles, security systems, and smart infrastructure projects. The sensor delivers accurate real-time data even in dynamic environments and can be easily integrated into modern automation and robotics platforms.
Key Technical Specifications
- Detection Range: up to 500 m (depending on target reflectivity)
- Range @ 10% reflectivity: up to 320 m
- Field of View (FOV): 14.5° × 16.2°
- Range Precision: ±2 cm (1σ @ 20 m)
- Angular Precision: < 0.03°
- Point Rate: 240,000 points/sec
- Dual Return Mode: up to 480,000 points/sec
- Latency: ≤ 2 ms
- Laser Wavelength: 905 nm
- Laser Safety: Class 1
- Integrated IMU: Yes (BMI088)
- Interface: 100 Mbps Ethernet
- Synchronization: IEEE 1588 PTPv2 / PPS
- Power Supply: 10–15 V DC (Converter 2.0: 9–30 V DC)
- Typical Power Consumption: approx. 12 W
- Protection Class: IP67
- Operating Temperature: -40 °C to +85 °C
- Dimensions: approx. 112 × 94 × 122 mm
- Weight: approx. 1.6 kg
Typical Applications
- Autonomous mobile robots (AMR / AGV)
- Long-range obstacle detection
- Industrial vehicles and machinery
- Rail and transport safety systems
- Perimeter monitoring / smart infrastructure
- Mapping and navigation systems
Scope of delivery
Livox Tele-15 × 1
Livox Converter 2.0 × 1
Optical Window Cleaning Cloth × 1
L-shape Hex Screwdriver × 1
Rubber Seal × 2
Screws Package (M3) × 1
Power Cable × 2
Sync Cable × 2
