Compact 3D LiDAR Sensor for Autonomous Robotics
Pre-Order – Delivery Date To Be Confirmed

The Livox Mid-360L is currently available for pre-order only. The expected delivery date has not yet been confirmed by the manufacturer.
We will provide updates on availability and estimated delivery times as soon as further information becomes available.

Please note: Pre-ordering does not guarantee a specific delivery date.

All prices are quoted excluding VAT and are intended for business customers only.

360° Environmental Scanning | Up to 100 m Maximum Range | IP67 Protection | Only 4.2 W Power Consumption

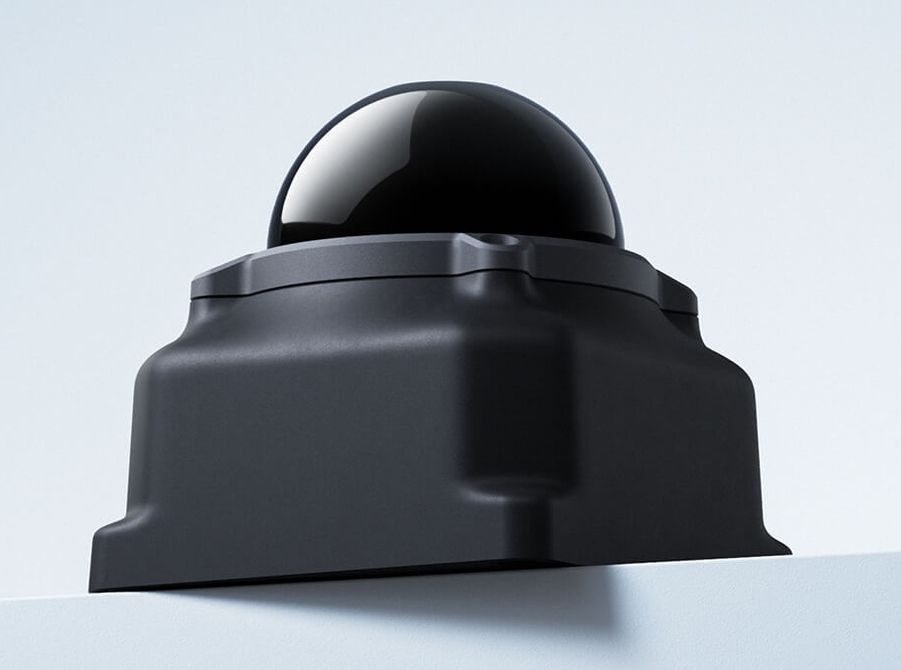

The Livox Mid-360L is a compact, energy-efficient 3D LiDAR sensor designed for autonomous mobile robots, industrial automation, and intelligent navigation systems.

Featuring a 360° horizontal field of view, a maximum ranging capability of up to 100 meters, and a point rate of 100,000 points per second, the Mid-360L delivers reliable real-time 3D environmental perception.

With its compact dimensions of just 65 × 65 × 63 mm, a weight of only 245 g, and an exceptionally low power consumption of 4.2 W, the sensor is particularly well suited for integration into battery-powered robotic platforms.

Its robust IP67-rated housing and wide operating temperature range from -20 °C to +65 °C make it suitable for both indoor and demanding outdoor environments.

Key Features

• 360° Surround View: Complete horizontal environmental scanning with a 44° vertical field of view.
• Up to 100 m Maximum Range: Typical detection range of 45 m at 10% reflectivity.
• High Point Density: Up to 100,000 points per second for detailed 3D point clouds.
• Ultra-Low Power Consumption: Only 4.2 W, ideal for battery-powered robots.
• Compact and Lightweight: Just 245 g with dimensions of 65 × 65 × 63 mm.
• Rugged Design: IP67 protection against dust and water ingress.
• Integrated IMU: ICM40609 for motion and acceleration measurements.
• Ethernet Connectivity: 100BASE-TX for fast and reliable data transmission.
• Precise Time Synchronization: Supports PTP v2 and GPS/PPS.
• Class 1 Laser Safety: Compliant with IEC 60825-1:2014.

Typical Applications

The Livox Mid-360L is particularly suitable for:

• Autonomous Mobile Robots (AMRs): Navigation, localization, and obstacle detection.
• Autonomous Lawn Mowers and Agricultural Robots: Obstacle detection and 3D environmental perception.
• SLAM and 3D Mapping: Real-time localization and creation of detailed environmental maps.
• Industrial and Logistics Robotics: Navigation for automated guided vehicles (AGVs) and warehouse robots.
• Service Robots: Spatial awareness and navigation in complex environments.
• Research and Development: Integration into ROS and ROS2-based robotic platforms using compatible software.

Technical Specifications

Optimized for Modern Robotics

The Livox Mid-360L combines a compact design, low power consumption, and reliable 3D environmental sensing in a single sensor.

Its exceptionally low energy requirements make it particularly attractive for battery-powered robotic platforms, where operating time and energy efficiency are critical.

The Ethernet interface and precise time synchronization capabilities simplify integration into advanced robotic systems with multiple sensors.

Combined with suitable navigation and perception software, the Mid-360L provides detailed 3D point cloud data for SLAM, obstacle detection, autonomous navigation, and environmental mapping.

Livox Mid-360L – Compact 3D environmental perception for the next generation of autonomous robotic systems.
