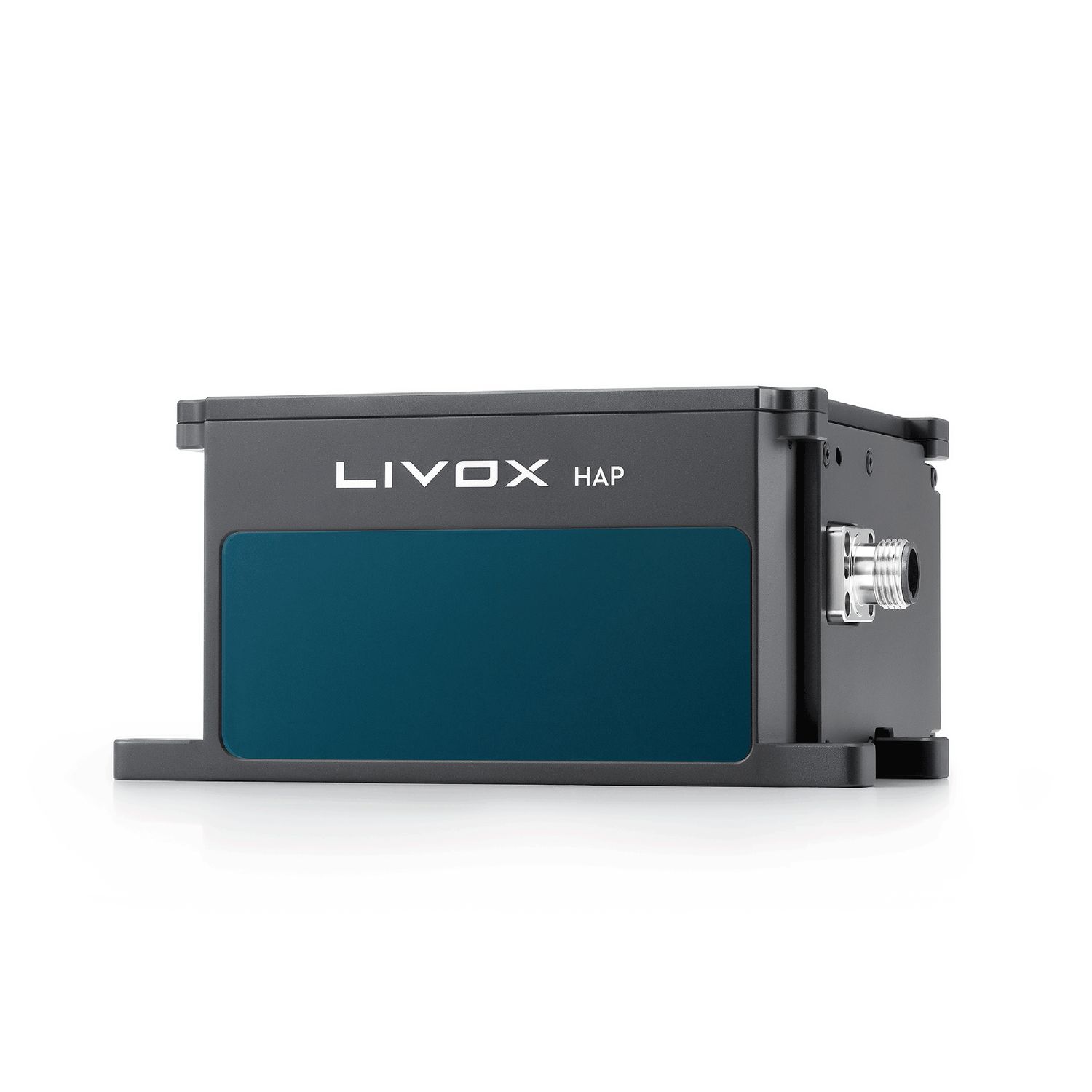

Livox HAP TX LIDAR
1 386.55€
Excl. shipping
Livox three-wire aviation connector
In stock
Product Details
Livox HAP TX LIDAR
Wires are not included in the product package and must be purchased separately.
Delivery time 5.10 days.
Laser Wavelength 905 nm
Laser Safety Class 1 (IEC60825-1:2014)(Eye Safety)
Detection Range (@ 100 klx) 150 m @ 10% reflectivity
FOV 120° (Horizontal) ×25° (Vertical)
Distance Random Error (1σ @ 20m) < 2 cm¹
Angular Random Error（1σ ）< 0.1º
Beam Divergence 0.28° (Vertical) × 0.03° (Horizontal)
Angular Resolution @ROI 0.23° (Vertical) × 0.18° (Horizontal)
Point Rate 452,000 points/s (first or strongest return)
Data Port HAP (TX) : 100BASE-TX Ethernet
Data synchronization gPTP
False Alarm Rate (@ 100 klx) ² < 0.01%
Operating Temperature -40°F to 185°F (-40℃ to 85℃)
Power 12 W typical³ (Startup: 26W)
Power Supply Voltage Range 9 ~ 18 V DC
Noise 40cm omnidirectional <45 dB (A)
IP Rating IP67
Dimensions 105×131.6×65 mm
Save this product for later
Livox HAP TX LIDAR
Display prices in:EUR
